Thales AT10K Full Page Passport & Document Reader (RFID), CN (Open Box)

Available conditions

The Thales AT10000 is a slim, durable document flatbed ID  and passport reader that authenticates and captures data from both electronic and print identity documents.

About The AT10K

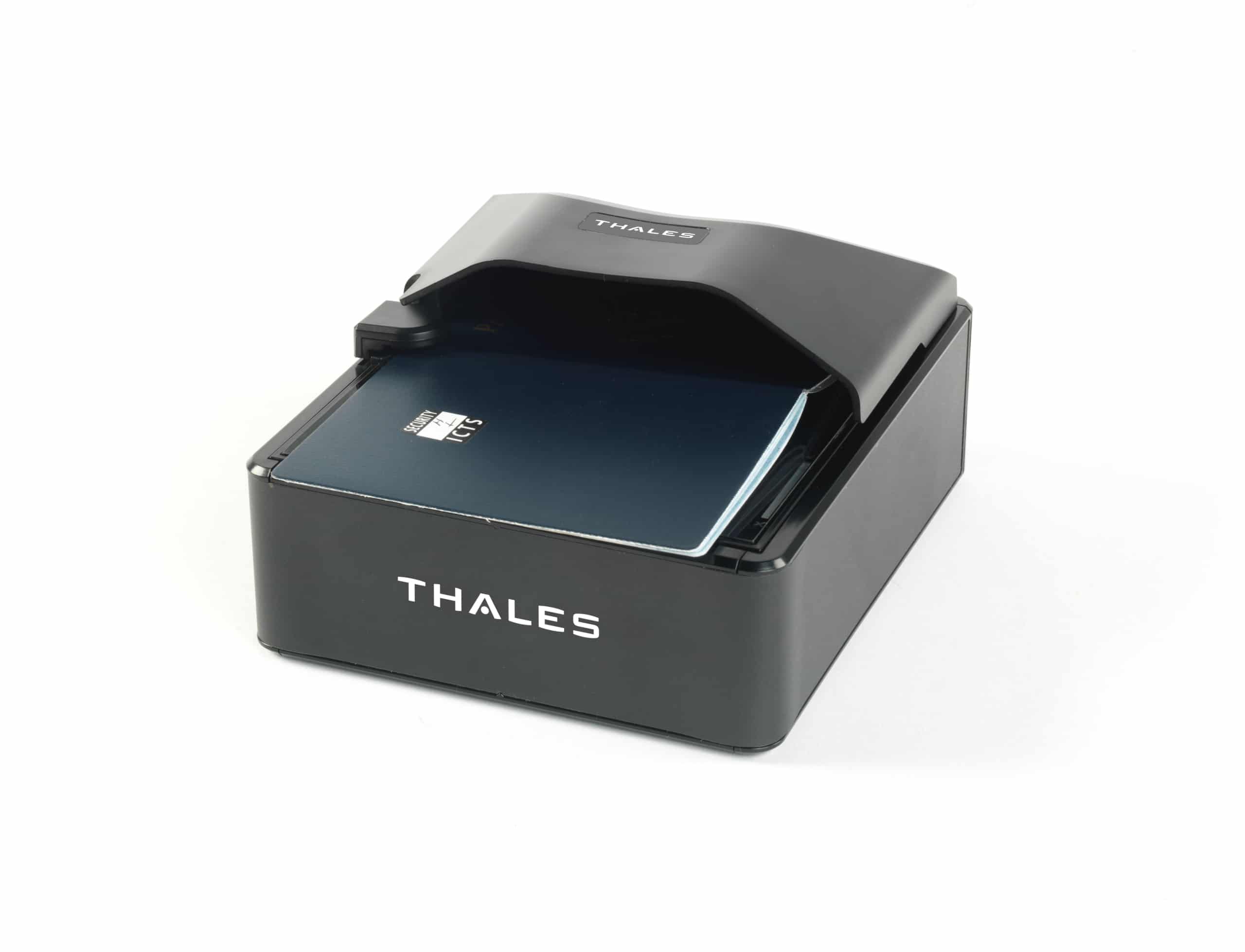

AT10K Thales Passport Reader

Thales AT10K Passport & Document Reader is designed especially for high security setups who require ID authentication of both driver’s licenses and passports. It is Thales’ top-shelf product and is suitable for use by the most demanding, and security conscious environments.

Thales AT10K is designed especially for most demanding and sensitive locations such as border management, banking, hospitality, and travel where fast and efficient working solutions are sought with accuracy and reliability.

LED Landing Lights For Easy Use

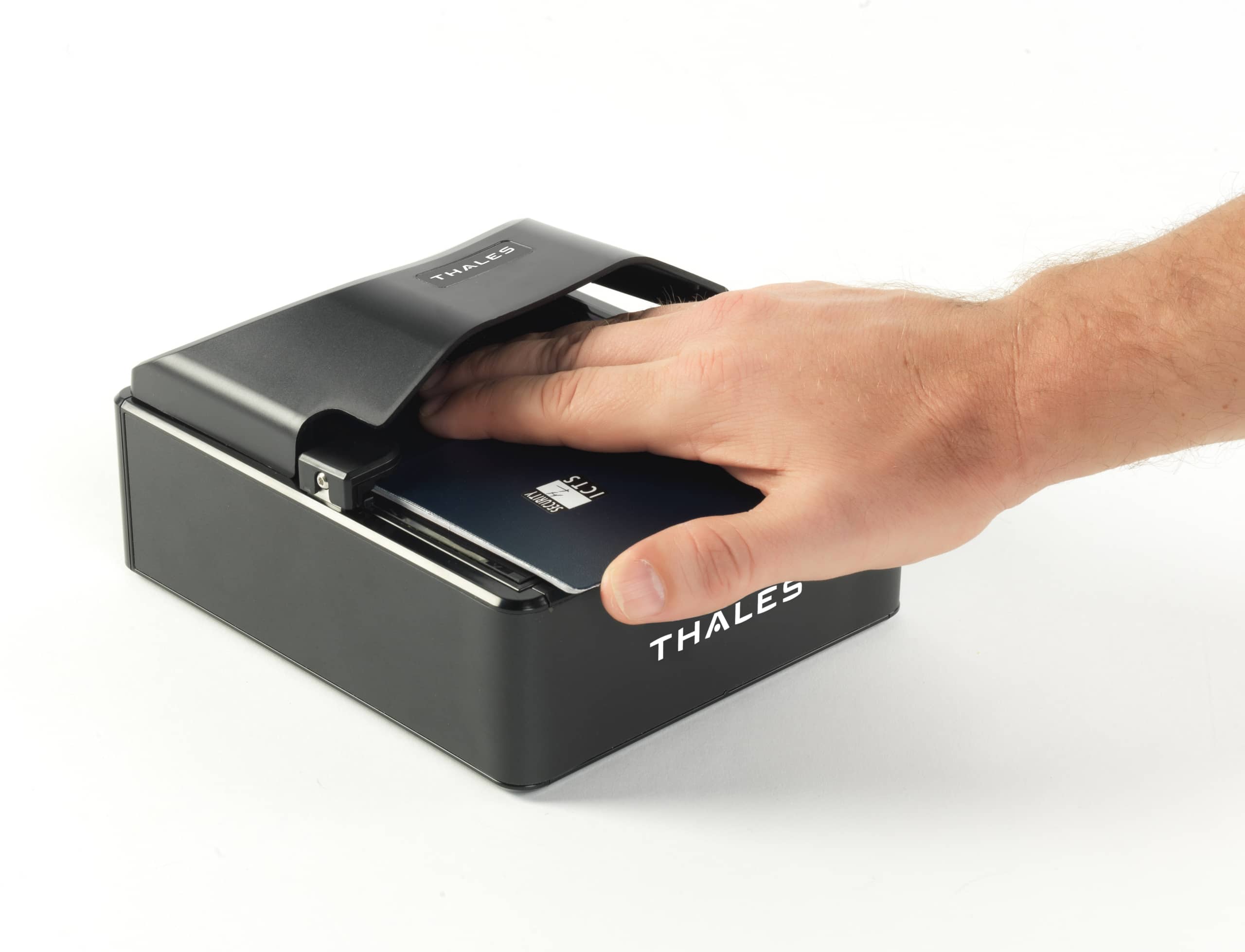

The Thales document reader has a flexible and direction-independent design with LED “landing light” feedback that guides the user to properly place the passport or ID. This makes the ID scanner suitable for infrequent users to help work efficiently with reduced queue times.

Hoodless Operation

The design is advanced with a removable cover for hoodless operation, and document spine hold down clip. The AT10K also provides anti-glare technology to reduce document reflections and ambient light interference with accurate and true colored images.

Optional Support for e-Docs & mDLs

It also supports biometrically enabled travel documents and driving licenses containing contactless integrated circuit chips (eIDs, eDLs, mDLs and ePassports) with the hood removed.

AT10K Key Features

  • Reads & scans 1D Barcodes (2 of 5 interleaved, 2 of 5 industrial, Code 128, and Code 39), and 2D Barcodes (PDF 417, QR Code®, DataMatrix™ and Aztec formats)
  • Reads & scans passport machine readable zones (MRZ)
  • Capable of ID authentication using UV/IR/white light scanning as well as hologram and watermark checks (when paired with ID authentication software)
  • Uses a wide range of illuminations like RFID, Visible, Infrared and UV with standard and high resolution.
  • Anti-glare technology to reduce document laminate reflections and ambient light interference​
  • Supports biometrically enabled travel documents and driving licenses containing contactless integrated circuit chips (eIDs, eDLs, mDLs and ePassports).
  • Removable cover for hoodless operation
  • Document spine hold down clip – holds down new books and works on multiple, stapled books.

Shipment Includes

  • 1 Thales AT10K ID & Passport Scanner With RFID
  • 2-year manufacturer’s warranty (optional 3-year extended warranty)


How it Works (Videos)


Weight 2.4 lbs
Dimensions 7.4″ L x 6.3″ W x 2.6″ H (without hood), 4.0″ (with hood)
Operating Systems Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 10.
Resolution Standard 370 DPI image resolution, 3.1 Megapixel sensor. High Resolution 550 DPI option, 10 Megapixel sensor. RGB 24 bit color system
Reading Capability 1D, 2D Barcode (PDF417), MRZ, OCR
Connectivity 2.0 USB/Ethernet
Image Capture Yes
ID Authentication Capable
Powered USB/Ethernet/AC Powered
Recommended Software VeriScan ID Authentication

Drivers & Setup

Thales AT10K Hardware Driver Download

Thales AT10K User Manual & Setup Guide
