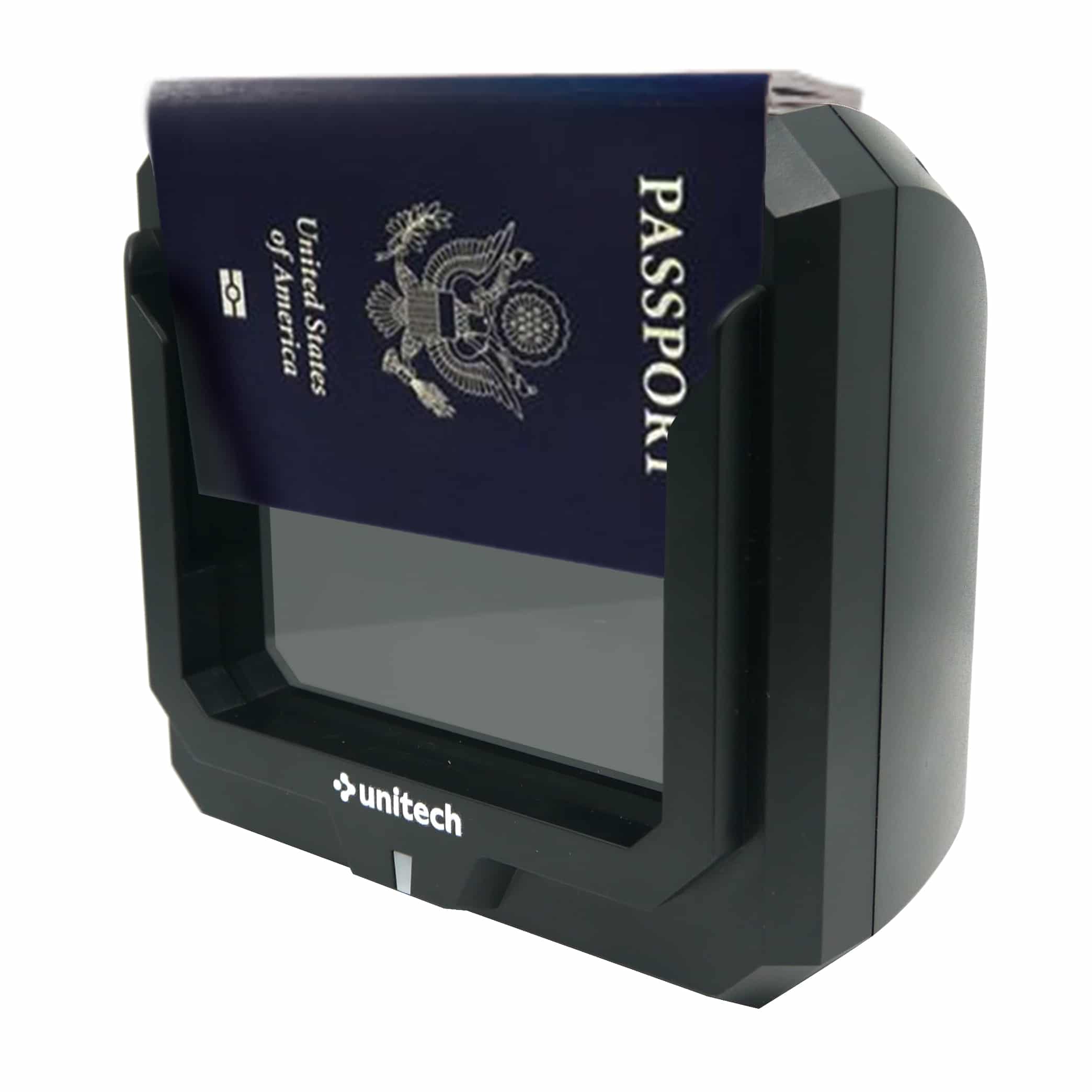

Unitech TS200 SwiftScan ID and Passport Reader

$349.00
Available conditions

The TS200-2UCB00-SG is a lightweight, space saver perfect for small corners and counters. Ideal for retail, event ticketing, and food service applications. Large scanning window means a wider read range and more scan accuracy. Scans all common 2D barcodes, Passport MRZ as well as mDLs. Uses a USB connection for flexible power options.

About the TS200 SwiftScan

The Unitech TS200 is the most cost-efficient desktop 2D scanner in the market. It can scan and decode 2D barcodes rapidly; significantly saving time and cost in the process. TS200 features a simple rectangle scan window design to ensure the scanner can cover the most possible scanning areas and positions.

It is especially reader-friendly on smartphone & tablet displays and is incredibly effective for retailers running promotions with barcodes on social media platforms. The Unitech TS200 is the perfect choice for retail, medical, and manufacturing industries with its rapid scanning speed and easily switchable scanning modes.

Features

  • Large scan window; Increasing work efficiency
  • Auto-senses ID and Passport for quick capture of data
  • Supports most 2D barcodes and Passports with MRZ
  • Multiple scanning modes (Normal, Smartphone & Rapid modes)
  • High performance with low power consumption
  • Power and data by a single USB cord to your PC or laptop
  • Includes 1 year manufacturers warranty (3 year warranty optional)

Shipment Includes

  • SwiftScan ID and passport reader
  • USB data and power cord

Software

Specifications

Weight 13.26 oz
Dimensions 2.04″ L x  5.86″ H x 3.14″ W
operating Systems Windows® 7, Windows® 8.1, Windows® 10, and Windows® 11 compatible
Resolution 1280 pixels x 1080 pixels
Reading Capability  1D, 2D Barcode (PDF 417, QR Code®, DataMatrix™ and Aztec formats), MRZ
Connectivity USB 2.0 or USB 3 high speed compatible via high speed USB 3.1 Type-C™ host port
Power Powered from a single USB 500mA port
Light Source Illumination: 650nm RED LED

FAQs

Does the Unitech TS200 scan passports?


Yes. The Unitech TS200 scans both IDs and passports.



Can the Unitech TS200 work offline?


The Unitech TS200 does not require internet access to scan IDs. However, the particular software you are using may require online connectivity. Both VeriScan ID Scanning & Visitor Management software, and ParseLink Data Automation software work offline.



What kind of computer do I need to use the Unitech TS200?


Any computer capable of running Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 10



Does the Unitech TS200 work with Mac OS?


No. The Unitech TS200 is only compatible with Windows OS.



Do I need software for the scanner to work?


Yes. We are providers of VeriScan and ParseLink solutions which are compatible with the E-Seek M500. The scanner is also compatible with other software, not provided by IDScan.net. Contact your software provider to confirm compatibility and functionality.



How is the Unitech TS200 powered?


The Unitech TS200 can be powered via USB cord that plugs into the computer, but it is recommended by the manufacturer to use the additional power supply cord that plugs into the wall so there are no issues with the scanner malfunctioning due to low power.



Do I need to install a hardware driver for the Unitech TS200 to work?


No. The TS200 is designed to be a plug and play device and no hardware driver is required.



Does the Unitech TS200 authenticate IDs?


No. The Unitech is not capable of ID authentication.



Can the Unitech TS200 capture images?


No. The Unitech TS200 can read and parse IDs, but does not have image capture functionality.



CDoes the Unitech TS200 scan all US IDs?


Yes. When paired with either our VeriScan or ParseLink solutions, the scanner is capable of reading all government issued US IDs.

Drivers & Setup

No additional drivers required. Windows will automatically install necessary drivers.

Setup for VeriScan

  • Plug the RJ45 (LAN style) connector end of the cable into the scanner.
  • Plug in both USB ends into the computer or a powered USB hub.
  • Start the VeriScan software and navigate to Settings > Devices > +Add > Scanner and select the COM port assigned to the scanner.

Setup for ParseLink

  • Plug the RJ45 (LAN style) connector end of the cable into the scanner.
  • Plug in both USB ends into the computer or a powered USB hub.
  • Start the Wizzforms software.
  • Right click the ParseLink Icon in the system tray and navigate to Reader/Scanner 1.
  • Click the dropdown and select the COM port assigned to the scanner.

Compatible Software

ParseLink Desktop

Highly customizable data and image capture software that will scan driver’s license, state ID or passport information directly to ANY field entry program, including MS Excel, Access, Outlook, QuickBooks, ERP software, CRM software, visitor management systems (Yardi) or web forms.

VeriScan

Access control, age verification, visitor management, and data capture software. It is an effective and easy to operate ID scanning system with the ability to capture photo image via a connected camera. Collect, update and maintain your visitors’ records with an easy-to-use interface. Export data in multiple formats including csv., print badges, save log entries, set up custom alerts, and more
