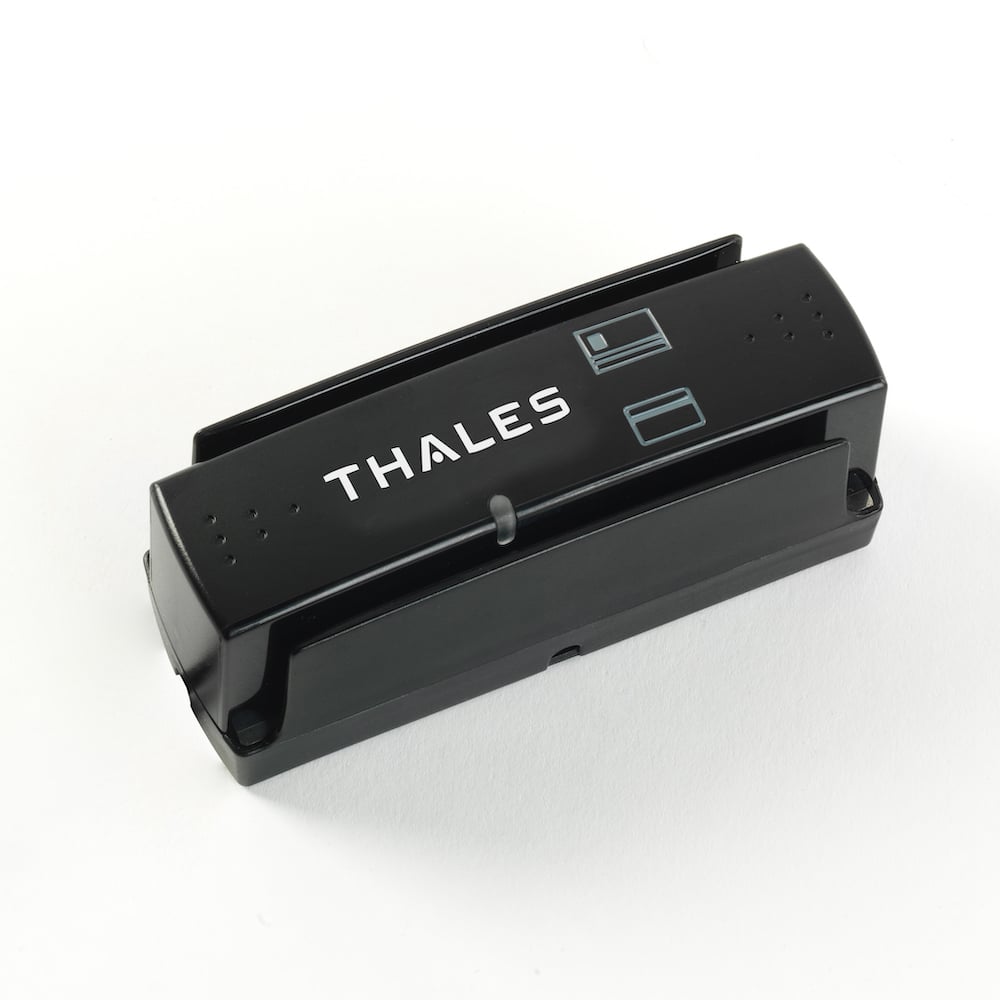

Thales CR100M Document Passport Reader Scanner MRZ MSR MRTDS USB, US

Available conditions

This scanner reads all MRZ documents including passports and green cards. It’s compact size and simple one-swipe scanning allows for versatile placement and use.

About the CR100M

A compact card reader, the Gemalto (former 3M) MRZ Swipe Reader CR100M offers the ability to read codeline data from passports, Machine Readable Travel Documents (MRTDs) with simple hand-swipe operation, requiring minimal training. In addition, the CR100M can scan magstripes on credit cards to securely scan both identity documents and payment tools.

With its small footprint, it can be attached to a cash register, display, it can be integrated into small bank counter or cash desk environments, making it ideal for banking, car rental agencies, hotels, and retail as well as Border Management, Law Enforcement, and Transportation.

Integrates With


Highly customizable data and image capture software that will scan driver’s license, state ID or passport information directly to ANY field entry program, including MS Excel, Access, Outlook, QuickBooks, ERP software, CRM software, visitor management systems (Yardi) or web forms.


An access control, age verification, visitor management, and data capture software built for computers running Windows. It is an effective and easy to operate ID scanning system with the ability to capture photo image via a connected camera. Collect, update and maintain your visitors’ records with an easy-to-use interface. Export data in multiple formats including csv., print badges, save log entries, set up custom alerts, and more


  • USB powered (no power supply), single interface cable (2m or 15cm options at time of purchase)
  • Bi-directional swiping
  • Scan passports, visas, passport cards, and any document containing an MRZ
  • Scan credit cards
  • Desktop mount for stable, non-slip swiping (optional, user installable)
  • Can be attached to an LCD or other device/mounting using 3M Dual Lock fasteners
  • Read success is shown using a red, green, blue LED indicator
  • OEM and integrators options available

Package Details

  • 1 Thales CR100M
  • 2-year manufacturer’s warranty
  • Optional 3-year extended warranty



Weight 4 oz
Dimensions 3.8″ L x 1.3″ W x 1.8″ H
Operating Systems Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 10.
Resolution N/A
Reading Compatibility MRZ, MSR
Connectivity 2.0 USB
Powered USB/AC Power
Recommended Software  ParseLink Autofill Software or VeriScan Software

Hardware Driver
